GENERAL
Brand : APC
Part Number : SMC1000IC
Model : Smart-UPS

OUTPUT
Output power capacity : 600Watts / 1.0kVA
Max Configurable Power (Watts) : 600Watts / 1.0kVA
Nominal Output Voltage : 230V
Output Voltage Distortion : Less than 5%
Output Frequency (sync to mains) : 50/60Hz +/- 3 Hz
Other Output Voltages : 220, 240
Topology : Line Interactive
Waveform type : Sine wave

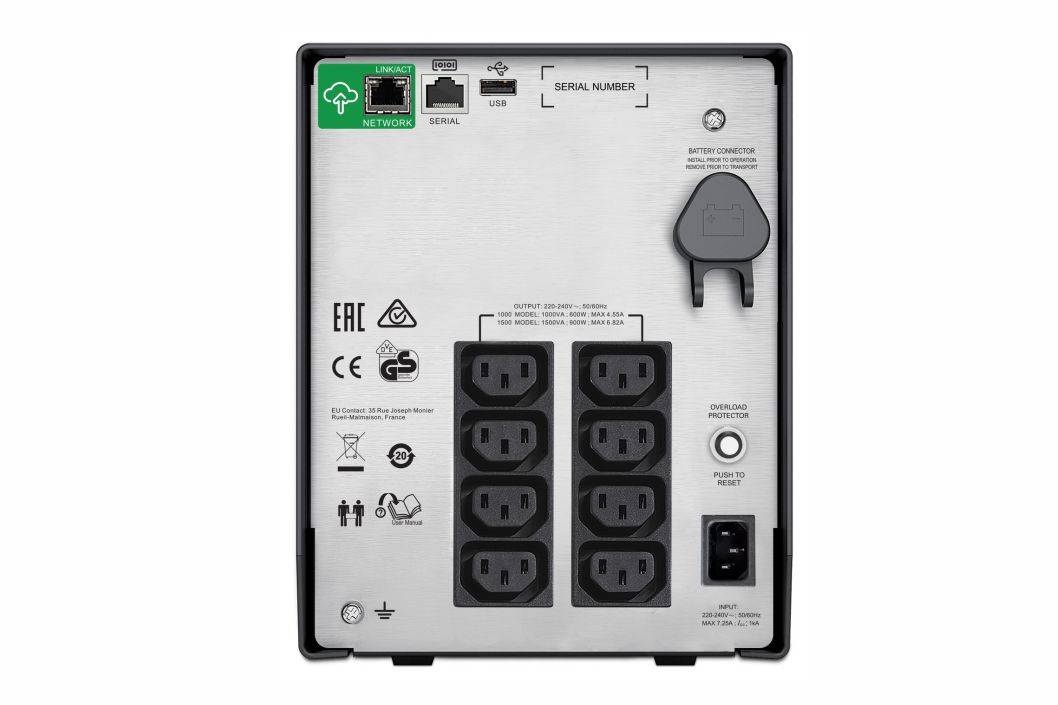

Output Connections :
(8) IEC 320 C13 (Battery Backup)
(2) IEC Jumpers (Battery Backup)
Transfer Time : 6ms typical : 10ms maximum

INPUT
Nominal Input Voltage : 230V
Input frequency : 50/60 Hz +/- 3 Hz (auto sensing)
Input Connections : IEC-320 C14
Input voltage range for main operations : 180 - 287V
Input voltage adjustable range for mains operation : 170 - 300V
Other Input Voltages : 220, 240

BATTERIES
Battery type : Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time : 3hour(s)
Replacement Battery : APCRBC142
Expected Battery Life (years) : 3 - 5
RBC Quantity : 1

COMMUNICATIONS & MANAGEMENT
Interface Port(s) : RJ-45 Serial, USB

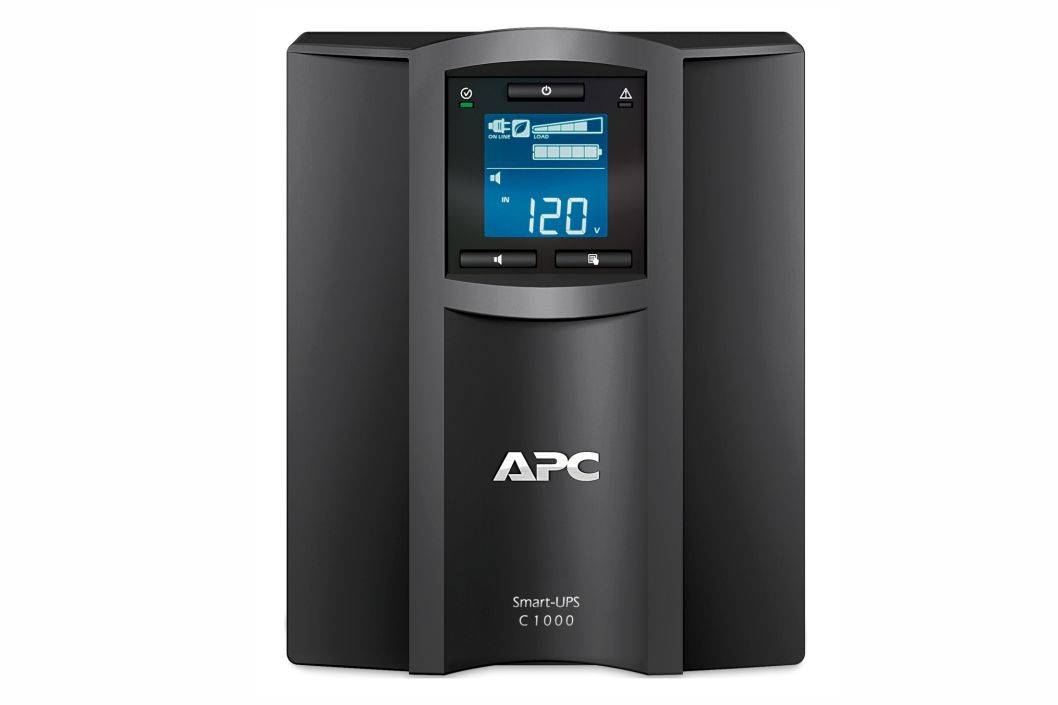

Control panel : Multi-function LCD status and control console
Audible Alarm : Alarm when on battery : distinctive low battery alarm : configurable delays

SURGE PROTECTION & FILTERING
Surge energy rating : 455Joules
Filtering : Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

PHYSICAL
Maximum Height : 219MM, 21.9CM
Maximum Width : 171MM, 17.1CM
Maximum Depth : 439MM, 43.9CM
Net Weight : 17.27KG
Shipping weight : 19.55KG
Shipping Height : 376MM, 37.6CM
Shipping Width : 328MM, 32.8CM
Shipping Depth : 595MM, 59.5CM
Color : Black
Master Carton Units : 1.0
Units per Pallet : 18.0

ENVIRONMENTAL
Operating Temperature : 0 - 40 °C
Operating Relative Humidity : 0 - 95 %
Operating Elevation : 0-3000meters
Storage Temperature : -15 - 45 °C
Storage Relative Humidity : 0 - 95 %
Storage Elevation : 0-15000meters

CONFORMANCE
Approvals : CE, CSA, GOST, UL 1778, VDE

Standard warranty : 2 years replace, GANTI UNIT
