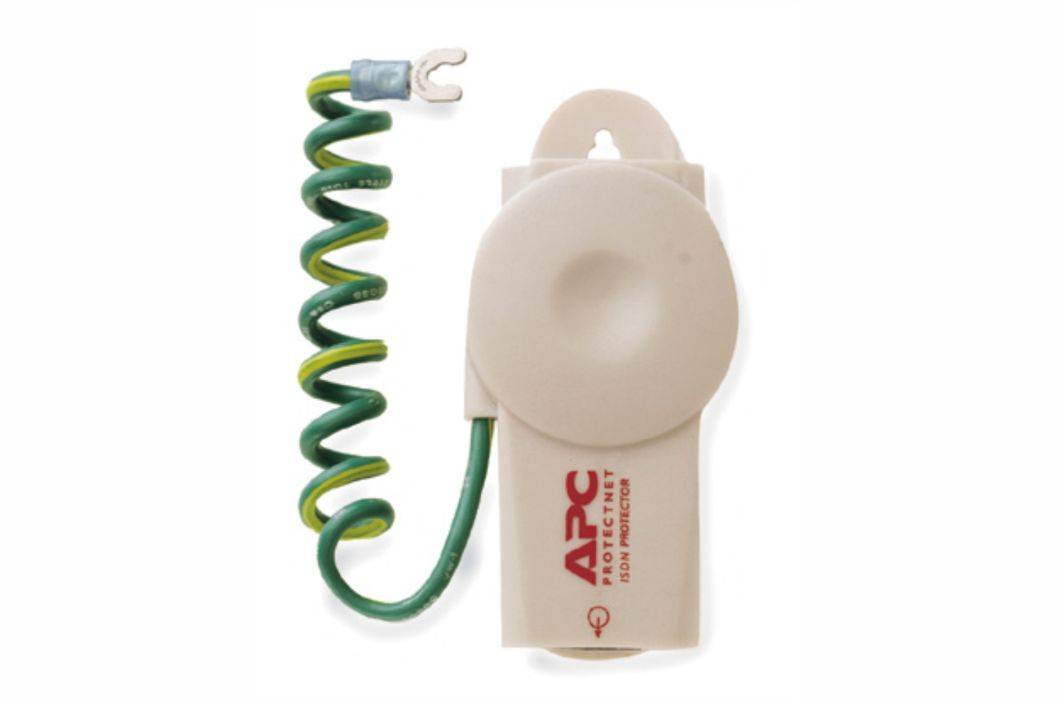

APC PNET 1GB

Surge Protector

Available At:

INPUT
Input Connections : --

SURGE PROTECTION & FILTERING
Data Line Protection : RJ45 10/100/1000 Base-T Ethernet protection
Data Lines Protected (multi-line only) : 1-8
ts_nm_surge_response : 1ns
Peak Current Common Mode : 0.25kAmps
Peak Current Normal Mode : 6.5kAmps

PHYSICAL
Maximum Height : 104MM, 10.4CM
Maximum Width : 47MM, 4.7CM
Maximum Depth : 28MM, 2.8CM
Net Weight : 0.05KG
Shipping weight : 0.11KG
Shipping Height : 104MM, 10.4CM
Shipping Width : 90MM, 9.0CM
Shipping Depth : 29MM, 2.9CM
Color : Beige
Master Carton Dimensions (Length x Width x Height) : 522 x 582 x 434MM
Master Carton Units : 144.0
Master Carton Weight : 21.0
Units per Pallet : 1152.0
SCC Codes : 1073130422673 1

ENVIRONMENTAL
Operating Temperature : -15 - 65 °C
Operating Relative Humidity : 0 - 95 %
Storage Temperature : -15 - 65 °C
Storage Relative Humidity : 0 - 95 %

CONFORMANCE
Approvals : UL 497B
Standard warranty : 2 years replace, GANTI UNIT

SUSTAINABLE OFFER STATUS
RoHS : Compliant
REACH: Contains No SVHCs
Other Environmental Compliance : China RoHS
