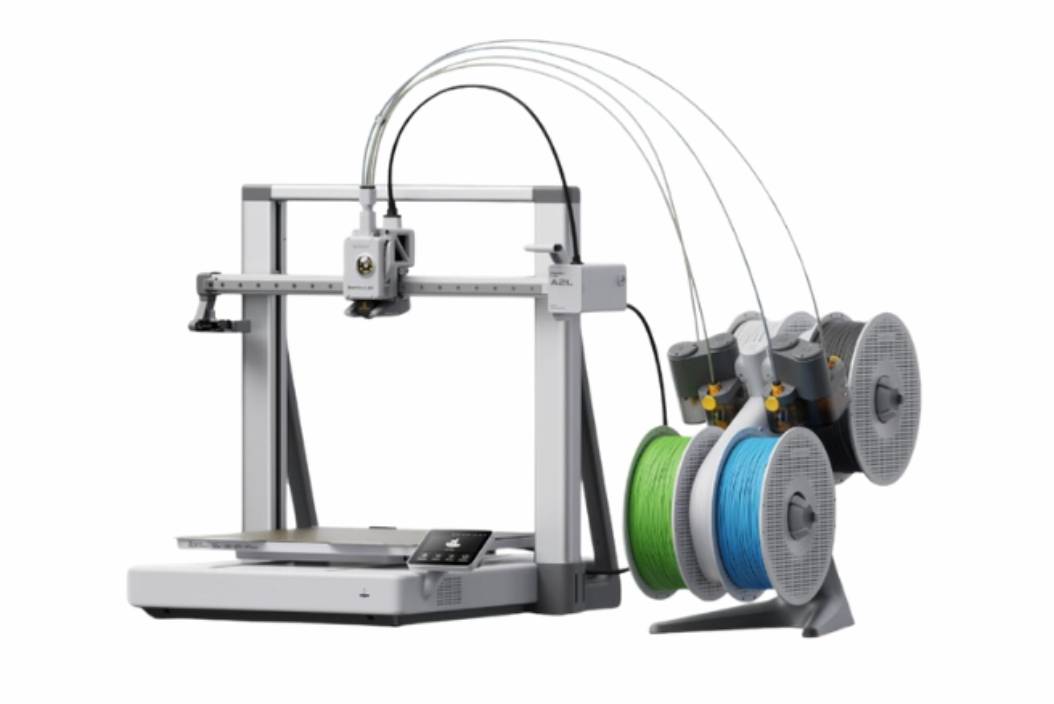

BAMBU LAB PRINTER 3D A2L

BAMBU LAB PRINTER 3D A2L

Printer

Available At:

Keunggulan:

- Full auto calibration jadi tidak ada kalibrasi manual
- Dilengkapi active vibration compensation bisa print lebih halus sampai layer terakhir
- Dilengkapi Active flow rate compensation untuk hasil print lebih bagus di setiap sudut print
- Proses print lebih tidak berisik hanya dibawah 48 db, bisa dipakai di dalam ruangan tanpa menganggu
- Dilengkapi sparepart paling bagus seperti linear rail untuk print lebih halus
- Acceleration sangat cepat sampai 10,000 mm/s2
- Mesin melakukan resonance calibration di X dan Y Axis untuk print lebih halus
- Mesin bisa cek kondisi belt, nozzle pressure otomatis
- Proses print sangat cepat dengan sistem CoreXY
- Nozzle gampang dicopot pasang hanya dengan 1 clip
- Bisa kontrol via cloud, handphone, dan LAN
- Mesin ada dilengkapi kamera dalam printer buat mengawasin proses printing

Summary

Body

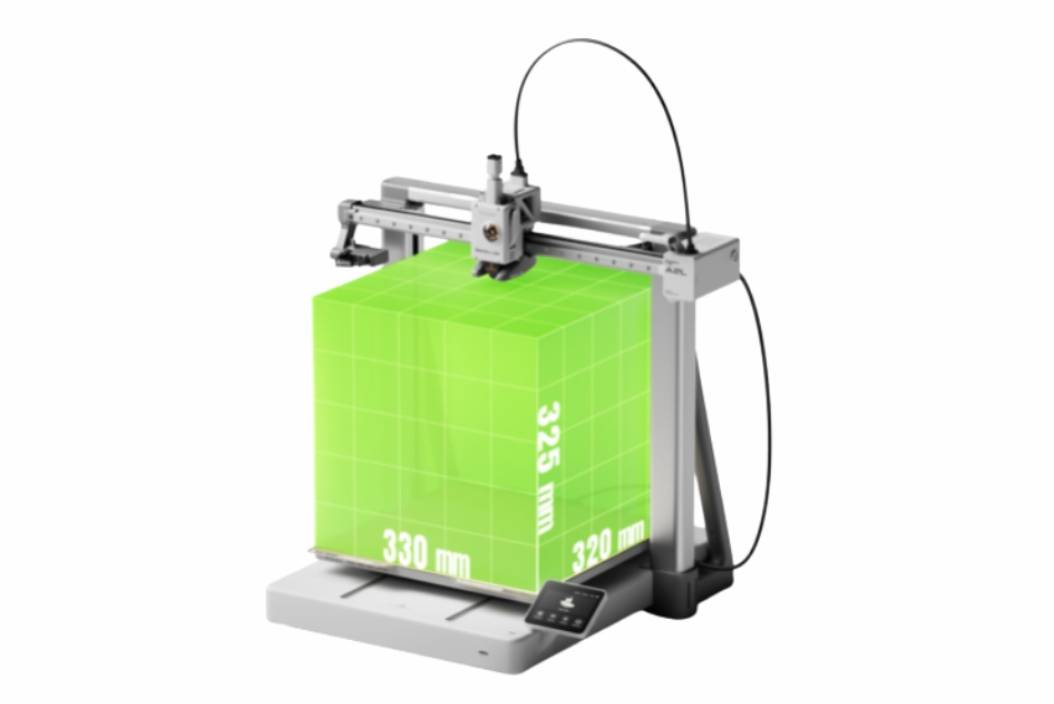

  • Build Volume (WxDxH): 330*320*325 mm
  • Chassis: Aluminum and Steel
  • Outer Frame: Plastic

Speed

  • Max Speed of Toolhead: 500 mm/s
  • Max Acceleration of Toolhead: 10 m/s²
  • Max Hot End Flow: 28 mm3/s (Test parameters: 150 mm round model with a single outer, wall; Bambu Lab PLA Basic; 220 °C printing temperature)



Electrical Requirements

  • Voltage: High-voltage Version: 200-240 VAC, 50/60 Hz, Low-voltage Version: 100-120 VAC, 50/60 Hz
  • Max Power: High-voltage Version: 1000 W@220 V, Low-voltage Version: 1000 W@110 V

Sensors

  • Camera: Low-frame-rate camera, up to 1080P, supports timelapse Photography
  • Filament Run Out Sensor: Supported
  • Filament Tangle Sensor: Supported
  • Filament Odometry: Supported
  • Power Loss Recover: Supported
  • Clumping Detection: Supported

Electronics

  • Display: 3.5 inch, 240*320 Touchscreen
  • Connectivity: Wi-Fi, Bambu-Bus
  • Storage: Micro SD Card
  • Control Interface: Touchscreen, mobile App, PC App
  • Motion Controller: Single-core Cortex-M4 Processor & Single-core Cortex-M7 Processor

ToolHead

  • Extruder Gears: Hardened Steel
  • Nozzle: Stainless Steel
  • Max Hot End Temperature: 300 ℃
  • Supported Nozzle Diameter: 0.2 mm, 0.4 mm, 0.6 mm, 0.8 mm
  • Filament Cutter: Built-in
  • Filament Diameter : 1.75 mm
  • Extruder Motor: Servo Extruder Motor

Wi-Fi

  • Frequency Range: 2412 - 2472 MHz (CE/MIC), 2412   - 2462 MHz (FCC), 2400 - 2483.5 MHz (SRRC)
  • Transmitter Power (EIRP): <23 dBm (FCC)，<20 dBm (CE/SRRC)
  •  Protocol: IEEE 802.11 b/g/n



Supported Filament

  • PLA, PETG, TPU, PVA: Ideal
  • PLA-CF、PETG-CF: Suitable for Printing (Replace with Hardened Steel Nozzle)

Physical Dimensions

  • Dimensions: 544*529*505 mm
  • Net Weight: 12.8 kg

GARANSI : SPAREPART 1 TAHUN
